Network-based GIS reduces electric utility outages by replacing static asset maps with a connected, phase-aware model of how every pole, conductor, switch and transformer relates to one another. That connectivity is what allows fault location, isolation and service restoration (FLISR), outage management systems (OMS) and advanced metering infrastructure (AMI) to pinpoint a fault automatically rather than waiting on a customer phone call. Utilities that maintain an accurate, traceable network model consistently report faster restoration, fewer truck rolls and measurably lower SAIDI and SAIFI scores.
- Network-based GIS, a connected and traceable model rather than a static asset map, is the foundation that FLISR, OMS, ADMS and AMI integrations depend on to function accurately.
- Vegetation remains a leading single cause of distribution outages, and accurate network-based GIS combined with LiDAR corridor mapping is what makes targeted vegetation programmes possible instead of blanket cycle trimming.
- A 2014 US Department of Energy study of FLISR deployments found reductions in customers interrupted of up to 45 percent and customer minutes of interruption of up to 51 percent for an outage event, but only where the underlying network model was accurate.
- The biggest threat to outage reduction is rarely the absence of technology. It is an unreliable network model with broken connectivity, mismatched phasing or untraced new connections.
- AMI last gasp signals can cut outage notification times meaningfully, but their value depends entirely on a network model accurate enough to translate a meter alarm into the correct transformer or fuse.
Why Outage Reduction Starts With the Network Model
Every minute a distribution circuit is down costs money, in lost revenue, regulatory penalties, emergency crew overtime and customer goodwill. Utilities have invested heavily in outage management systems, advanced distribution management systems, advanced metering infrastructure and FLISR automation to bring that cost down. Yet a pattern shows up repeatedly across post-incident reviews: the technology performed exactly as designed, and still produced a slow or wrong response, because the network model underneath it was incomplete, outdated or simply wrong.
That network model is the job of GIS, but not the kind of GIS most people picture. A static asset map showing where a pole, conductor or transformer sits is useful for inventory and reporting. It cannot tell an OMS which customers sit downstream of a tripped recloser, or tell a FLISR application which switch to open to isolate a fault without de-energising healthy feeders. Only a network-based GIS, one that models how every device connects to every other device, with phase, direction and load awareness, can answer those questions in the seconds an outage event demands.
This matters more in 2026 than it did even five years ago. Distributed energy resources, rooftop solar, battery storage and electric vehicle charging are changing how power flows through low-voltage networks, which means the assumptions older connectivity models relied on are quietly going out of date. Regulators are also tightening reliability reporting requirements in markets from Europe to Australia to Southeast Asia, which puts pressure on utilities to prove, not just claim, that restoration performance is improving year over year.

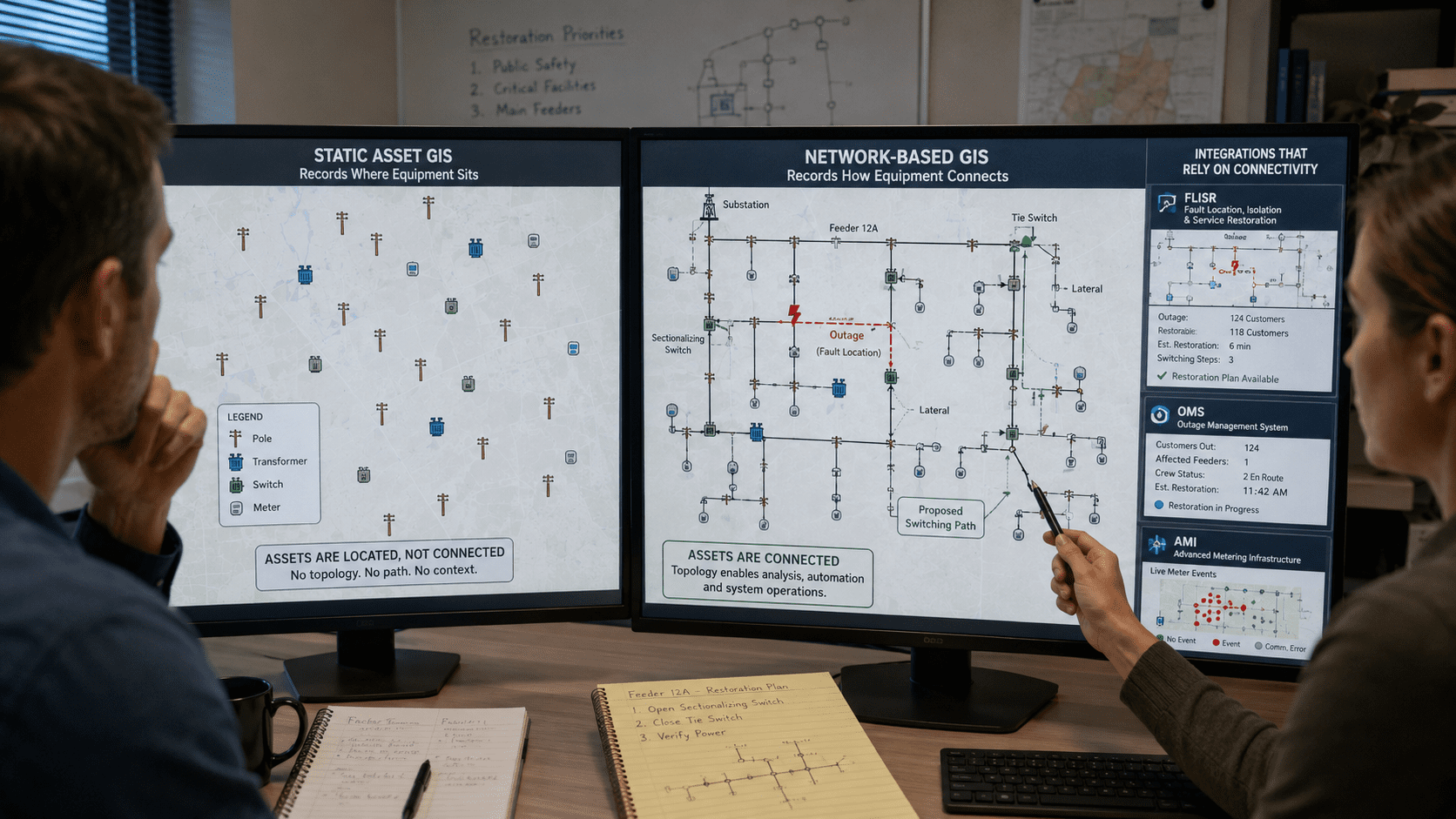

What Network-Based GIS Actually Is
Most utilities already have a GIS. The question worth asking is whether it is an asset GIS or a network-based GIS, because the difference determines whether the rest of the smart grid stack can function correctly. An asset GIS stores the location, type and attributes of equipment as points, lines and polygons. It answers questions such as “where is this transformer” or “how many poles do we have in this district”. It does not, on its own, know that the transformer is fed by a particular fuse, on a particular phase, downstream of a particular recloser.
A network-based GIS adds connectivity rules, nodes, edges and the logic that defines how features may legitimately connect, on top of that asset data. This is what allows the system to trace upstream and downstream from any point on the network, determine which customers are affected by a given fault, and support the load and phase calculations that automated switching depends on. In practical terms, this is the difference between a legacy geometric network, which models simple connectivity, and a modern connected utility network, which adds phase awareness, subnetworks and far richer tracing across electric, gas and water domains within a single platform.
RedPlanet Solutions implements this network-based approach through GIS for electric utilities built on GE Vernova Smallworld GNM Electric Office, a fully connected, phase-aware network model designed specifically to support grid modernisation and outage reduction. The same connectivity principles also apply on Esri’s ArcGIS Utility Network and on Hexagon Geospatial’s network tooling, which means the choice of platform matters less than whether the model itself is connected, current and field-verified.
Six Ways Network-Based GIS Cuts Outages
Outage reduction is rarely the result of a single tool. It is the compounding effect of several capabilities, all of which depend on the same accurate, connected network model underneath them. These are the six mechanisms that consistently show up in utilities with measurably better reliability performance.
Automated Fault Location
Connectivity, phase and switching state data lets an OMS calculate the likely fault location in seconds, not after a truck has been sent to look.
FLISR and Self-Healing Switching
Automated isolation and restoration depends entirely on an accurate map of switching devices and how they relate to one another.
Targeted Vegetation Management
Corridor and canopy data tied to specific circuits lets crews trim the highest-risk spans first, instead of an entire territory on a fixed cycle.
Predictive Asset Health
Equipment age, loading history and network position combine to flag the assets most likely to fail before they actually do.
Network-Aware Crew Dispatch
Mobile field tools that trace upstream and downstream get crews to the right device, on the right route, the first time.
Storm-Aware Restoration Planning
Overlaying forecast weather data onto the network model lets planners pre-stage crews where impact is most likely.
1. Automated Fault Location
Before AMI and connected network models became standard, utilities located faults largely through customer calls and field patrols. That process is slow and incomplete, since as many as three out of four trouble calls relate to a single service connection rather than a wider fault. With AMI last gasp signals mapped against an accurate network model, an operator can see immediately which transformer or lateral a cluster of lost meters sits on, rather than guessing from address data alone.

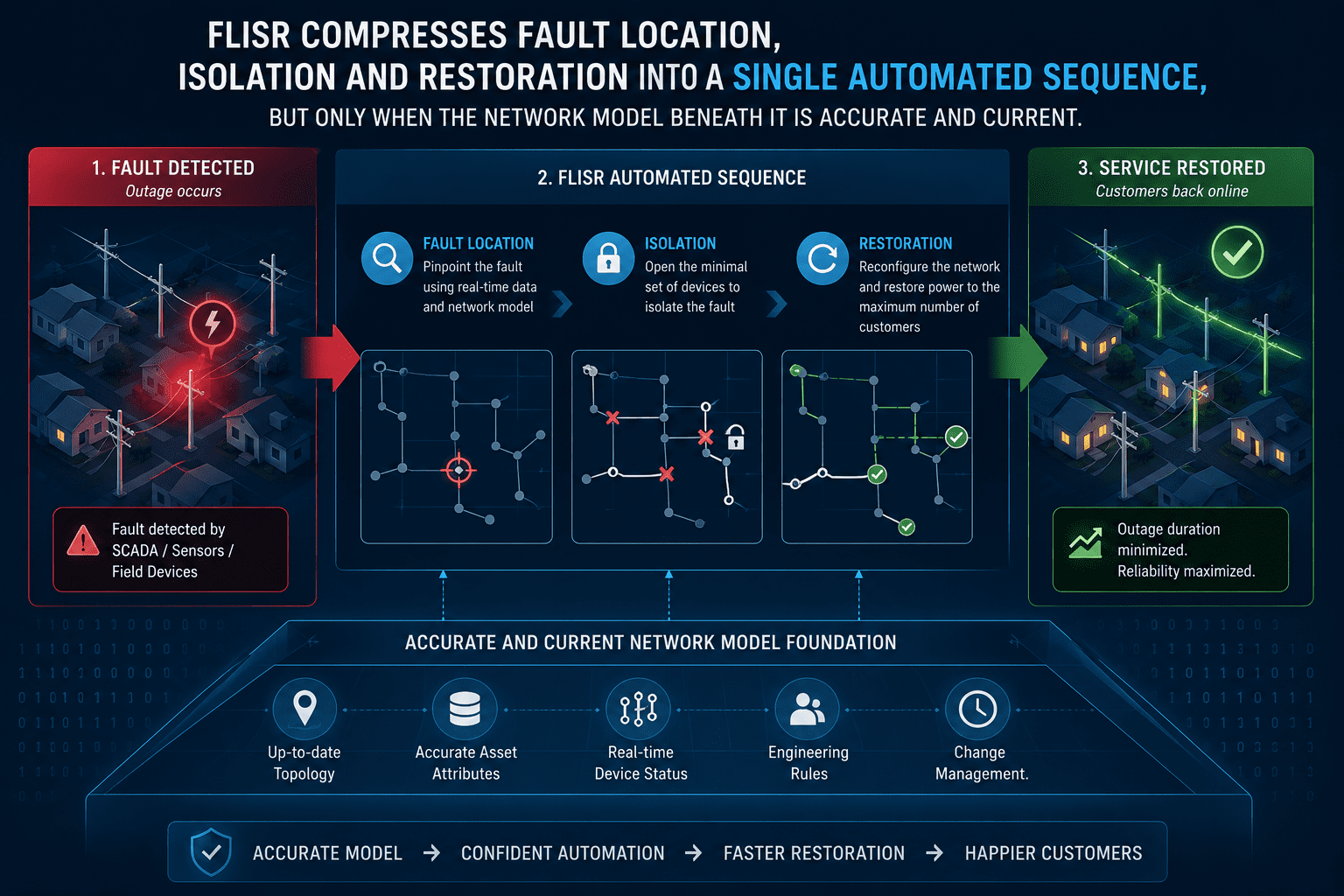

2. FLISR and Self-Healing Switching
A US Department of Energy study of utilities running FLISR found it reduced the number of customers interrupted by up to 45 percent and customer minutes of interruption by up to 51 percent for a given outage event. Those gains are not automatic. FLISR opens and closes switches based entirely on what the network model tells it about connectivity and phase. If the model is wrong, an automated switching operation can isolate the wrong section, leave healthy customers without power unnecessarily, or fail outright.
3. Targeted, Network-Prioritised Vegetation Management
Vegetation consistently ranks as one of the leading causes of distribution outages, and during severe storms tree-related faults can account for the overwhelming majority of trouble spots on a circuit. Blanket cycle trimming, where every circuit is trimmed on the same fixed schedule regardless of risk, wastes budget on low-risk spans while leaving high-risk corridors under-treated between cycles. When drone and LiDAR-based vegetation data is tied directly to the network model, planners can prioritise the specific spans nearest the highest customer counts and the worst outage history, which is a far more efficient use of an annual vegetation budget than treating the whole territory equally.
4. Predictive Asset Health Scoring
Equipment failure is a recurring contributor to distribution outages alongside weather and vegetation. A network-based GIS allows asset condition data, inspection records and loading history to be combined with network position, so that a deteriorating component on a heavily loaded, high customer-count feeder is flagged ahead of an identical component on a lightly loaded spur. AI-assisted 3D mapping and automated pole inspection are increasingly used to feed that scoring with current field condition data rather than relying solely on equipment age.
5. Network-Aware Crew Dispatch
Knowing where the fault is matters little if the crew sent to fix it cannot find the right device or the safest access route. Mobile field platforms such as ATLAS support upstream and downstream tracing, live outage data and crew location visibility directly in the field, both online and offline, so that the same connected network model guiding the control room is also guiding the technician standing at the pole.
6. Storm-Aware Restoration Planning
Weather is consistently cited as one of the largest contributors to distribution outages. Overlaying forecast wind, lightning and precipitation data onto the network model lets storm planners pre-position crews and equipment near the feeders most likely to be affected, rather than reacting after the first calls come in. This is the same principle behind RedPlanet’s grid analytics work on storm readiness, network connectivity and visual intelligence.
Unsure whether your current GIS supports real network connectivity or only asset mapping? Our team can review your network model before you commit to an OMS or FLISR investment.
Talk To Our ConsultantsFrom Static Maps to Self-Healing Grids
Outage reduction capability builds in layers. A utility cannot deploy FLISR successfully on top of a network model that has never been validated for connectivity, and it cannot run effective predictive vegetation programmes without first having a reliable structure to attach that data to. Understanding where a network currently sits on this ladder is the first step in planning what comes next.
Most distribution utilities sit between Level 2 and Level 3. Reaching Level 5 is less about buying new software and more about sustaining accurate, field-verified connectivity data over time.
Matching the Capability to Your Outage Problem
Not every utility needs the same intervention. The right next step depends on where the network model currently stands and which outage causes are doing the most damage to reliability figures. Use this guide to match the situation to the capability worth investing in first.
Mostly paper or CAD-based records with no real connectivity model
Network model build and structured data migration before any OMS or FLISR investment
An asset GIS exists, but it has no tracing or connectivity capability
Upgrade to a connected geometric or utility network model with phase data validation
The network model is connected, but outages still take hours to locate and restore
Integrate the network model with OMS, AMI and SCADA before adding new field technology
Vegetation is the top recorded cause of outages on the network
LiDAR and drone corridor mapping tied directly to the network model for targeted trimming
Crews struggle to find or safely reach faults in the field
Mobile field workforce tools with live tracing, offline support and crew location data
Core systems are solid and the goal is automated, self-healing restoration
FLISR deployment on top of a validated, phase-aware network model
When RedPlanet Solutions Is a Strong Fit
RedPlanet Solutions is a strong fit when the barrier to better reliability is the data foundation itself, not just the software sitting on top of it. The work that moves the needle most often happens before an OMS or FLISR project ever goes live.
Connected network model build and migration
For utilities moving from static asset records to a fully connected, phase-aware network model with validated data quality.
OMS, ADMS and AMI integration support
For teams whose connectivity model is sound but whose outage detection and restoration systems are not yet talking to it effectively.
Drone and LiDAR vegetation corridor mapping
For utilities where vegetation-related outages are the largest single lever available for reliability improvement.
Mobile field crew and outage workflow tools
For field teams that need live, traceable network data in hand, both online and offline, via the ATLAS platform.
If your network model is already accurate, connected and integrated, and the gap is purely on the automation side, a specialist FLISR or ADMS vendor may be the better next call. If the underlying connectivity, phase or vegetation data is the weak point, that is where a geospatial partner adds the most value.
Three Rules for Getting Outage Reduction Right
Across implementations involving GE Vernova Smallworld, Esri and open-source network platforms, three principles have proven to separate outage reduction programmes that deliver from those that quietly stall after go-live.
“A network model that shows where assets are, but not how they connect, cannot support fault location or FLISR.”
Connectivity has to come before prediction in every outage reduction programme. Many utilities discover, only after a failed FLISR test, that the connectivity their GIS reports is incomplete, with untraced new service connections or unverified phase data sitting quietly in the model.
“An outage management system is only as fast as the most recently field-verified connection in the network model.”
As-built changes that are not traced back into the network model are among the most common causes of failed automated switching operations. A network model is a living dataset, not a one-time deliverable, and it needs a governance process to match.
“Ask any GIS partner to describe exactly how their network model exchanges data with your OMS, ADMS and AMI head-end today.”
A network model that cannot demonstrate a working integration, not a roadmap promise, with the systems that actually respond to outages is not yet doing the job it needs to do.
“The fastest fault location algorithm in the world is only as good as the last verified connection in your network model. Outage reduction is a data governance discipline before it is a software feature.”PK Senthilkumar, CEO, RedPlanet Solutions
What Changed Between 2020 and 2026
Outage reduction technology has moved quickly. Utilities benchmarking their reliability programmes against 2020-era expectations are working from an outdated picture of what is now achievable, and what is now expected by regulators and customers alike.
Static GIS and Manual Outage Reporting
Most distribution utilities relied on asset-only GIS, customer call centres and manual switching orders to identify and respond to outages.
AMI Scale-Up and Last Gasp Adoption
Smart meter rollouts accelerated, with last gasp outage notification becoming a standard expectation rather than a premium feature on new deployments.
FLISR and Distribution Automation Mature
FLISR moved from pilot programmes to standard practice on priority feeders, with measurable reductions in customer minutes of interruption becoming a documented business case.
Network Model and OMS Integration Becomes Mandatory
Regulators in multiple markets tightened reliability reporting requirements, pushing utilities to treat network model accuracy as a compliance issue, not just an operational preference.
AI-Assisted Predictive Outage Prevention
Asset health scoring, vegetation risk modelling and AI-assisted imagery analysis are now layered directly on top of the connected network model, shifting effort from restoration toward prevention.
The Real Cost of Poor Network Data
Most utilities can quote their SAIDI and SAIFI figures precisely. Far fewer can quote the cost of the network data quality issues quietly driving those figures higher than they need to be.
| What Goes Wrong | The Downstream Cost | Risk Level |
|---|---|---|
| Untraced or broken connectivity | OMS and FLISR calculate the wrong fault location, sending crews to the wrong device and extending restoration time well beyond what the technology should allow. | High |
| Disconnected GIS, OMS and AMI | Outages must be confirmed manually rather than automatically, which means unnecessary truck rolls for the roughly three in four trouble calls that relate to a single premise. | High |
| Blanket, cycle-based vegetation trimming | Budget is spent evenly across low-risk and high-risk spans alike, leaving the circuits most prone to vegetation-related outages under-treated between cycles. | High |
| Inaccurate phase data | Automated switching operations can fail outright or isolate a larger section of the network than the fault actually requires. | Medium |
| Poor as-built data governance | Each uncaptured field change compounds model drift, making every future automation project slower and more expensive to validate. | Medium |
| AMI deployed without network integration | Last gasp signals arrive, but cannot be reliably translated into the correct transformer or fuse, limiting the restoration time improvement AMI alone can deliver. | Medium |
RedPlanet Solutions offers a free initial network model assessment to help you understand exactly where data quality is limiting your outage reduction results.
Book a Free ConsultationFive Mistakes That Undermine Outage Reduction Programmes
Treating GIS as a mapping tool, not an operational data foundation
When GIS is scoped as a reporting and inventory system, the connectivity, phase and load data that OMS and FLISR actually require is often left out of the original project, only to be discovered missing during the first automation pilot.
Skipping network model validation after capital projects
New feeders, reconductoring work and substation upgrades change connectivity. If as-built data is not traced back into the network model promptly, the gap between the real grid and the modelled grid grows with every project.
Deploying OMS or FLISR on top of an unvalidated connectivity model
Automation amplifies whatever is underneath it. A flawed network model that was tolerable for manual operations becomes a liability the moment switching decisions are automated.
Applying blanket vegetation cycles instead of network-prioritised targeting
Treating every circuit identically ignores the fact that outage risk from vegetation varies enormously by corridor, species, growth rate and customer density along that specific span.
Underestimating how DER and EV charging are changing low-voltage networks
Rooftop solar, battery storage and EV charging are altering how power flows at the edge of the network, sometimes complicating outage detection methods that assumed power only ever flowed one way.
Comparing Network Model Approaches
| Approach | Best For | Strengths | Watch For |
|---|---|---|---|
| Legacy CAD or paper records | Very small networks with minimal automation ambitions | Low upfront cost, familiar to long-serving staff | No connectivity, no tracing, cannot support OMS or FLISR |
| Static asset GIS | Inventory, reporting and basic location-based queries | Good for asset counts, compliance reporting and mapping | No connectivity model, cannot support fault analysis |
| Geometric network | Mid-sized utilities needing basic upstream and downstream tracing | Established technology, lower implementation complexity | Limited support for advanced phase-aware automation |
| Connected utility network | Utilities running or planning OMS, ADMS and FLISR integration | Phase-aware, supports advanced tracing and subnetworks | Requires disciplined data governance to stay accurate |
| Integrated network model with OMS, ADMS and AMI | Utilities targeting automated, near real-time restoration | Fastest fault location and restoration outcomes available | Demands continuous field verification and system integration upkeep |
Network-Based GIS Outage Reduction Checklist
18 checks across three phases. Work through all of them before scoping an OMS, ADMS or FLISR investment.
Frequently Asked Questions
What is network-based GIS?
How does network-based GIS reduce power outages?
What is the difference between an asset GIS and a network-based GIS?
How does FLISR rely on GIS?
Can AMI alone reduce outage duration without GIS?
How does vegetation management connect to network-based GIS?
How long does it take to build or upgrade a connected network model?
Does network-based GIS work with Esri, GE Vernova Smallworld, or open-source platforms?
A Reliable Grid Starts With a Reliable Model
Outage reduction technology has never been more capable. FLISR can isolate a fault and restore healthy feeders in seconds. AMI can flag a lost connection before the first customer call comes in. AI-assisted imagery can flag a decaying pole or an overgrown span months before it becomes a fault. None of it works reliably without a network model that knows, accurately and currently, how the grid is actually connected.
That is the practical lesson behind every reliability case study worth reading. The utilities that consistently reduce SAIDI and SAIFI year over year are not necessarily the ones with the newest OMS or the most advanced FLISR logic. They are the ones that treated their network-based GIS as critical operational infrastructure, gave it a governance process, and kept it accurate as the grid changed beneath it.
Whether the next step is a connectivity audit, a full network model migration, targeted vegetation mapping or OMS and AMI integration, the starting point is the same. Understand exactly where your network model stands today, then build outward from there.
Ready to Talk?
RedPlanet Solutions builds and maintains the connected, phase-aware network models that power electric utility outage reduction, with two decades of geospatial experience across utilities, government and infrastructure spanning five continents.
Talk To Our GIS Consultants
PK Senthilkumar is CEO of RedPlanet Solutions and the author of this guide. His work focuses on GIS consulting, network-based GIS for electric utilities, grid reliability and practical spatial decision-making for organisations operating across Malaysia, India, Australia and international markets.
